Reducing FRP Part Weight Without Losing Required Performance

Set a complete-assembly weight target, protect mounting and service interfaces, and verify custom FRP parts through sample weighing and application-specific checks.

Reducing FRP Part Weight Without Losing Required Performance

A lighter fiberglass part is useful only if it still fits, supports its hardware and performs under the specified loads. Set the weight target alongside stiffness, impact, temperature and assembly requirements. A material-density comparison cannot predict the weight or performance of the finished component.

Start with the existing assembly or an agreed design baseline. Include brackets, inserts, hinges, frames and finishes in both options. This avoids approving a lighter outer shell whose additional supports cancel the intended reduction.

Build a weight budget for the complete assembly

Record the baseline weight, the proposed maximum weight and what each figure includes. For a removable cover, decide whether the limit applies to the panel alone or to the panel with handles, seals and hardware. For a vehicle body, separate the molded skin from the chassis and supporting structure.

Item to recordBuyer inputApproval check
Assembly boundaryParts, supports, hardware and finish included in the comparisonSame components counted in both weight figures
Loads and movementOperating loads, support positions and permitted deflectionAgreed calculations or representative tests
Critical interfacesMounts, sealing lands, openings and contact zonesFit and measurement against released datums
Target massMaximum finished weight and permitted variationFirst-article and production weighing method

Define the weighing condition: finished and dry, with identified hardware fitted and loose accessories excluded or listed. Ask the supplier to flag uncertainty in an early estimate so the project can resolve it before tooling approval.

Discuss where material can change

Thickness alone is a poor starting point for weight reduction. The manufacturer needs to understand the load path, unsupported spans and attachment forces before proposing reinforcement changes. A broad cosmetic face and a loaded hinge zone may require different laminate arrangements.

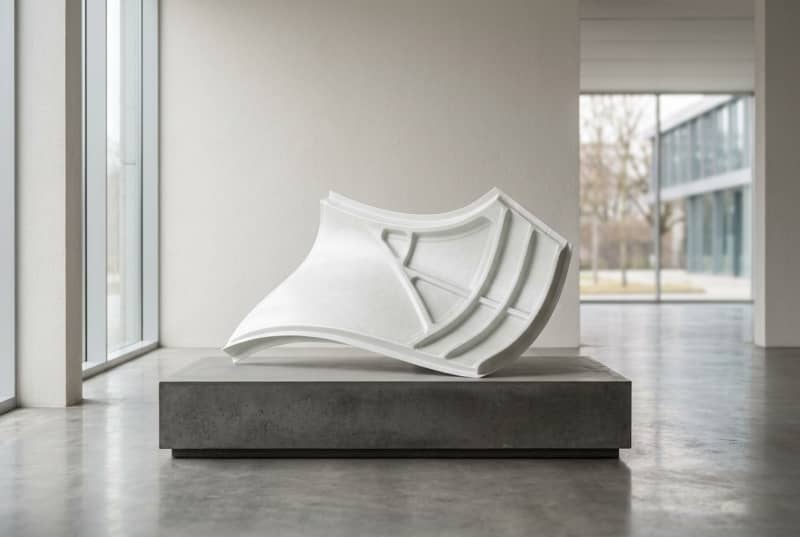

  • Large spans: review curvature, ribs or a suitable core arrangement where stiffness controls the design. Include core edges and attachment zones in the proposal.
  • Local hardware: retain defined reinforcement around hinges, brackets, inserts and fasteners. Agree the loads and the way they enter the shell.
  • Integrated features: evaluate molded returns or mounting features against separate brackets. Include tool access, assembly clearance and replacement requirements.
  • Part divisions: account for joining flanges, fasteners and seals when splitting a large component for transport or service.

Request the proposed construction and verification method, rather than accepting a general promise of a lighter laminate. Resin, reinforcement and cure requirements must still suit the operating environment.

Keep the review specific to the component

For an FRP electric vehicle body shell, show chassis contacts, panel supports, door and glazing interfaces, and the required clearance to moving parts. The body-shell weight target does not establish the strength of the complete vehicle or its approval status.

A front fairing panel needs controlled mounting locations and enough stiffness to maintain its intended shape. Provide the operating exposure, vibration requirements and attachment details; verify those requirements on the proposed assembly.

A control console housing needs stable device openings and service access. Reducing the shell weight should preserve screen mounts, removable covers and the support for the specified controls. Include equipment loads in the drawing package.

Approve weight and function on the same sample

Weigh the first article after trimming, finishing and fitting the agreed hardware. Compare it with the approved scope, then inspect critical dimensions and install it against the mating assembly or an agreed checking fixture.

Use the inspection plan to connect weight with performance. Depending on the application, this may include a deflection check, hardware-load test, closure operation or another specified test. Agree the method, acceptance values and responsible party before producing the sample.

If the sample is overweight, identify the cause before changing the laminate. Extra reinforcement, finishing build, hardware or an altered support design may explain the difference. Record any correction on the released construction and drawing revision, then repeat the affected checks.

Plan handling from shape as well as mass

A large, light panel can still be awkward to lift and vulnerable at thin returns. Specify handling points, packing supports and installation access. Confirm the packed dimensions separately from the part weight, because shipping volume may control freight arrangements.

For repeat orders, keep weight records linked to the approved configuration. A new bracket, finish or access opening may change both mass and local performance; review the affected requirements before treating it as the same production part.
